PROJECT BRIEF:
Design a marine themed light fixture dedicated to Maine's beautiful coast, Lobster & Fishing Industries and one special town.
SCOPE:
3D Model
3D Render
3D Print
Fabricate Prototype
Presentation
PROGRAMS USED:
Rhino3D, Keyshot,
Chitubox, Photon Workshop, Cura,
Photoshop, Illustrator, Indesign, Premier
3D PRINTING:
Prototype 1 printed by Rhodework Design
Prototype 2 printed by crK Technologies
*The second prototype was outsourced because at the time I did not have access to my 3D printers.
CLICK HERE
Click to enlarge and browse at your own pace.
MAP OF LUBEC
Laser engraved map of Lubec, Maine perfectly aligned with the surrounding coastline. Watch the fade animation, below, to see the match.

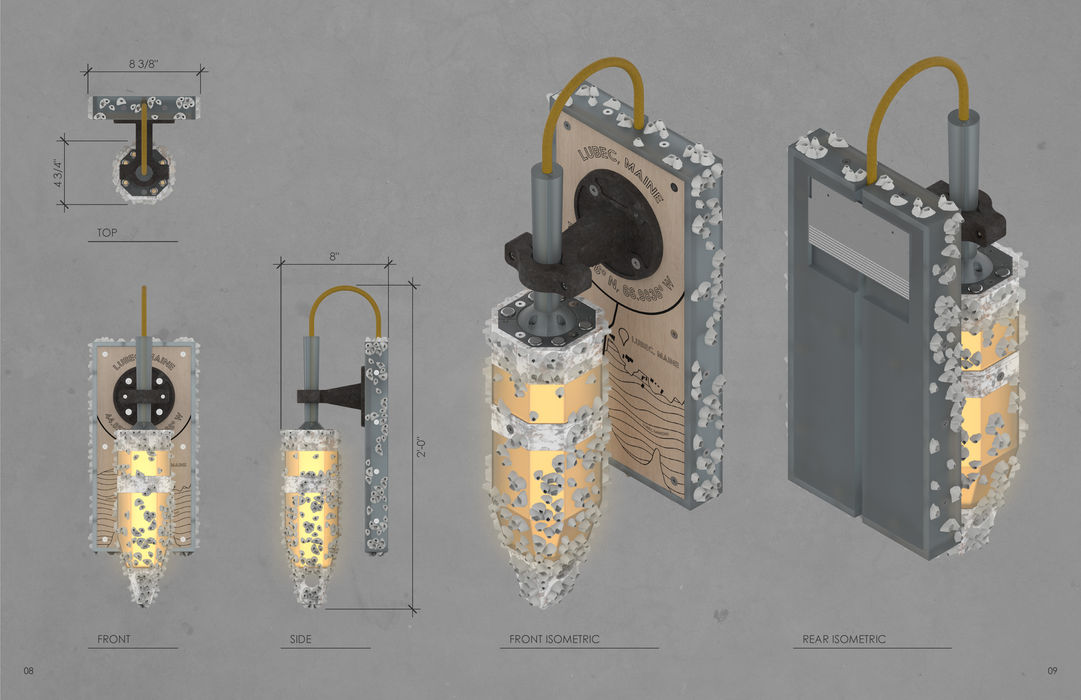

FINAL VARIATIONS
This lamp family offers variations in barnacle growth and mounting style, allowing the user to choose how weathered or pristine the piece feels.
COLOR TEMPERATURE STUDY
A comparison of color temperatures, illustrating how warmth, neutrality, and cool light affect the fixture’s presence.
BRINGING THE LAMP TO LIFE
This section captures the moment the lamp transitions from idea to object, as each component is 3D printed, assembled, and held for the first time as a real, physical piece.

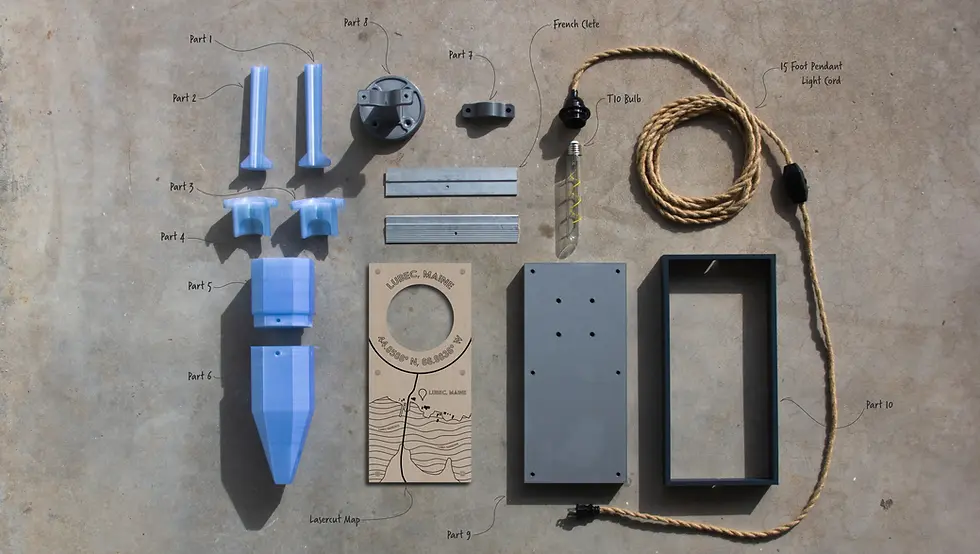

A look inside the structure of the piece, every printed form, fabricated element and crafted detail laid out and mapped to the assembly.
HEAT VENTILATION
Subtle inlet and outlet vents are integrated into the design, allowing cool air to enter through the concealed rope tie opening and warm air to rise out through the mesh grommets on top. The fixture is intended for low heat LED bulbs, ensuring efficient and safe operation.
GROWING BARNACLES
Beginning with real barnacle forms, this section captures the progression from organic reference, to 3D modeling, arranging them on the lamp form, to resin printing prep, and finally to holding the printed barnacles in hand alongside the originals.
